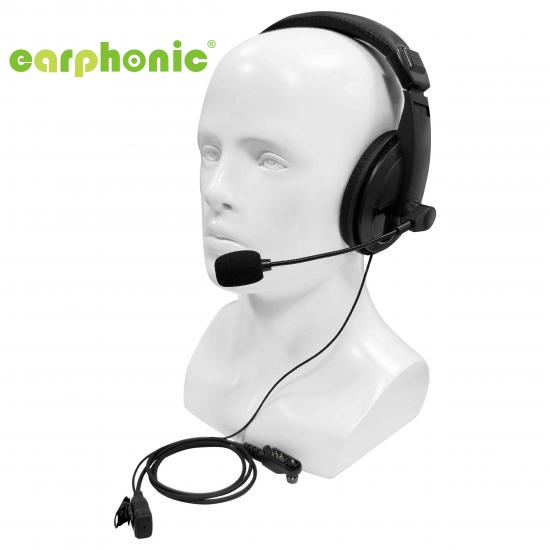

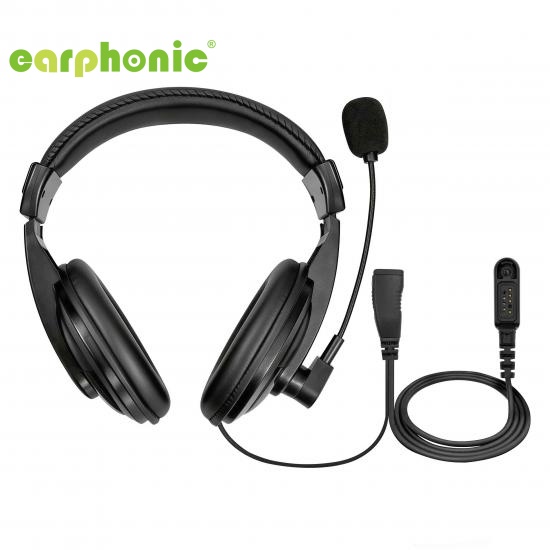

Boom Mic Headset for Hytera P50 Pro Product Profile

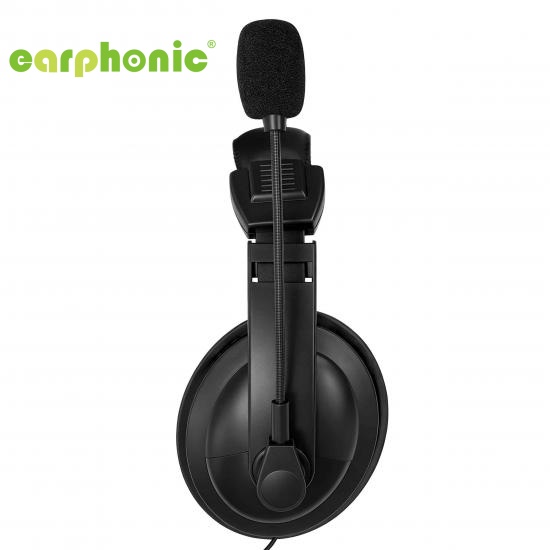

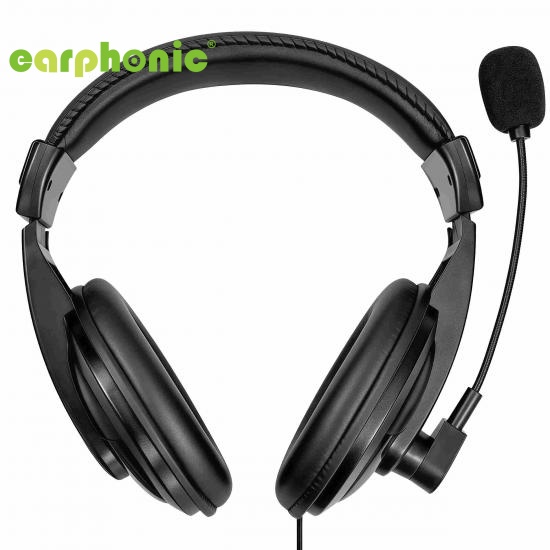

This professional overhead dual‑ear radio headset with adjustable boom microphone is engineered for Hytera P50, P50 Pro, P60, P50E and other radios. The wide padded headband and plush ear cushions offer steady comfort during extended working hours. The flexible boom mic can be angled precisely near your mouth to pick up crisp audio even in moderately noisy surroundings. It comes with reliable inline PTT control and strain‑relieved cabling to withstand frequent movement and tugging. This headset is a preferred pick for fleet dispatch, venue control, industrial supervision and commercial team communication.
OEM/ODM
Complete OEM & ODM services are available. We support customized product development according to your specific needs. Our service covers product design all the way to custom packaging, assisting your brand to gain better market competitiveness.
Customization Options
1. Product size, style and raw material customization
2. Custom colors & surface finishes
3. Logo printing and private label
4. Custom packaging artworks and structures
5. Custom special functions & performance upgrade
6. Brand‑exclusive personalized solutions

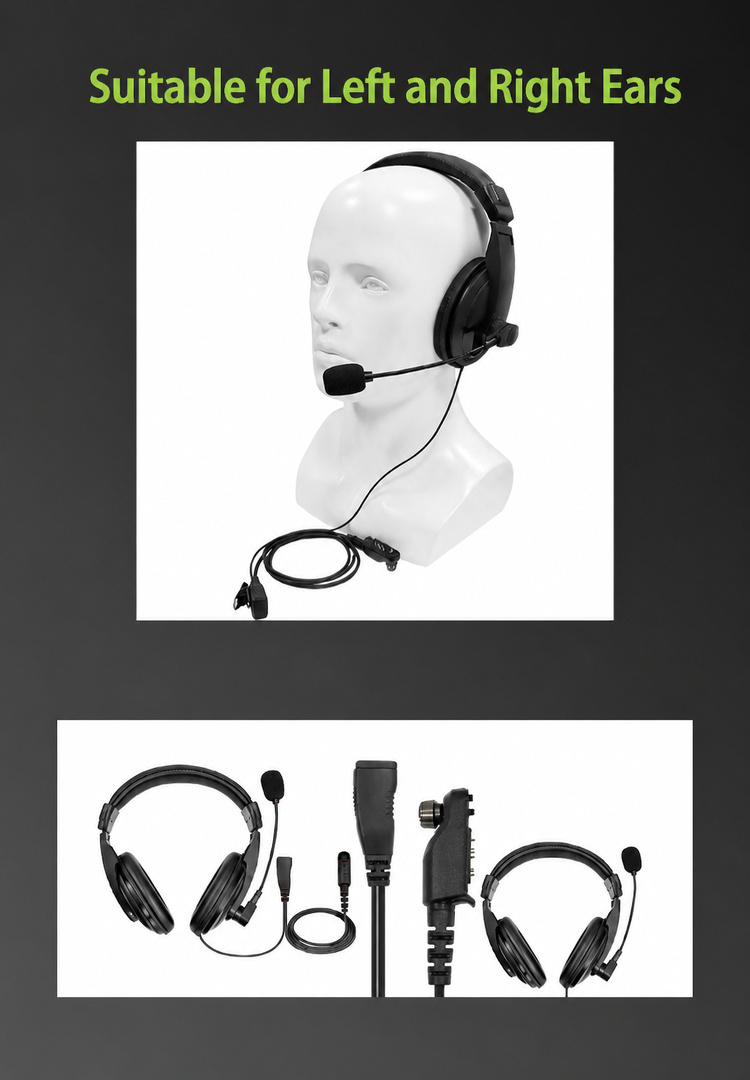

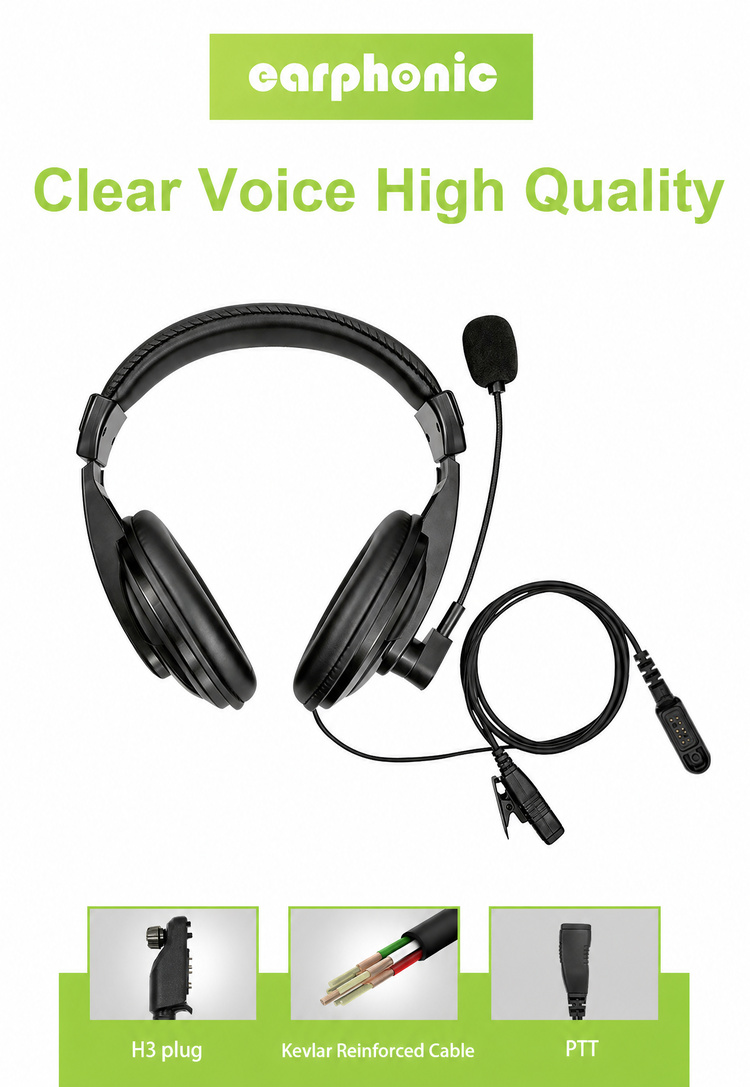

Heavy Duty Walkie Talkie Headset Over Ear Boom Mic PTT for Hytera P50 Two Way Radio

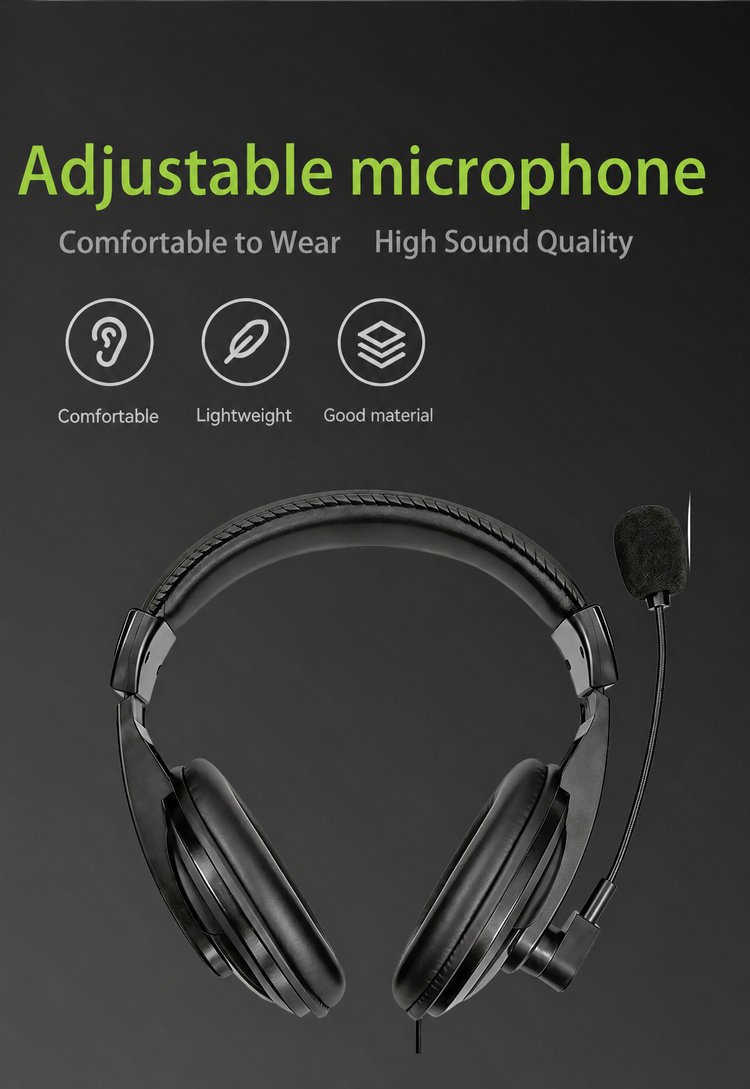

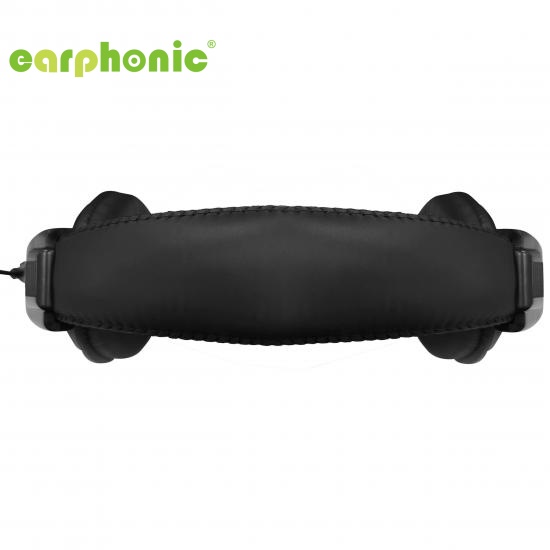

1. Soft padded over-ear cups with adjustable headband for all-day comfort

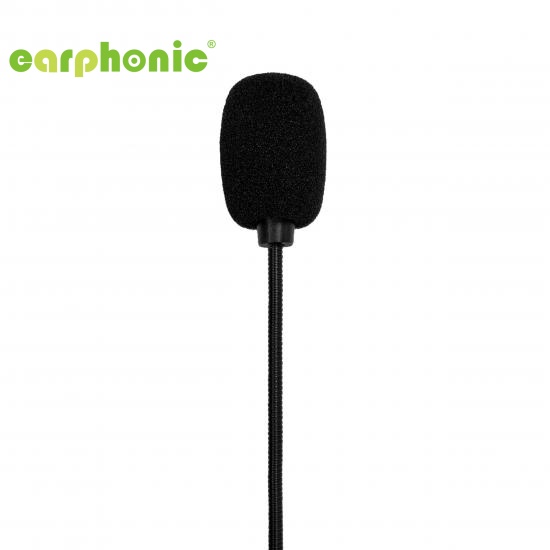

2. Flexible boom noise-cancelling mic delivers crystal clear voice transmission

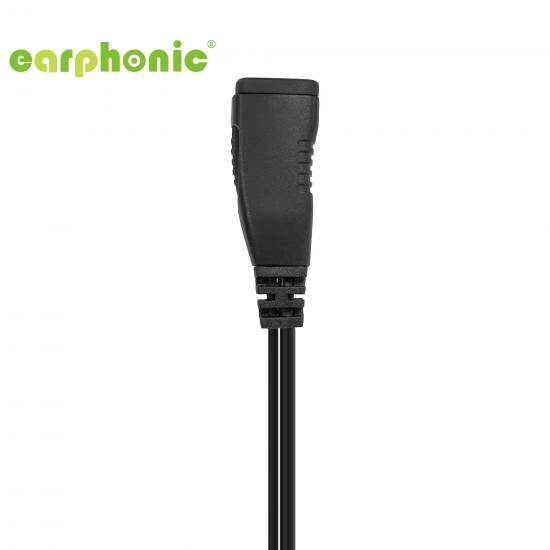

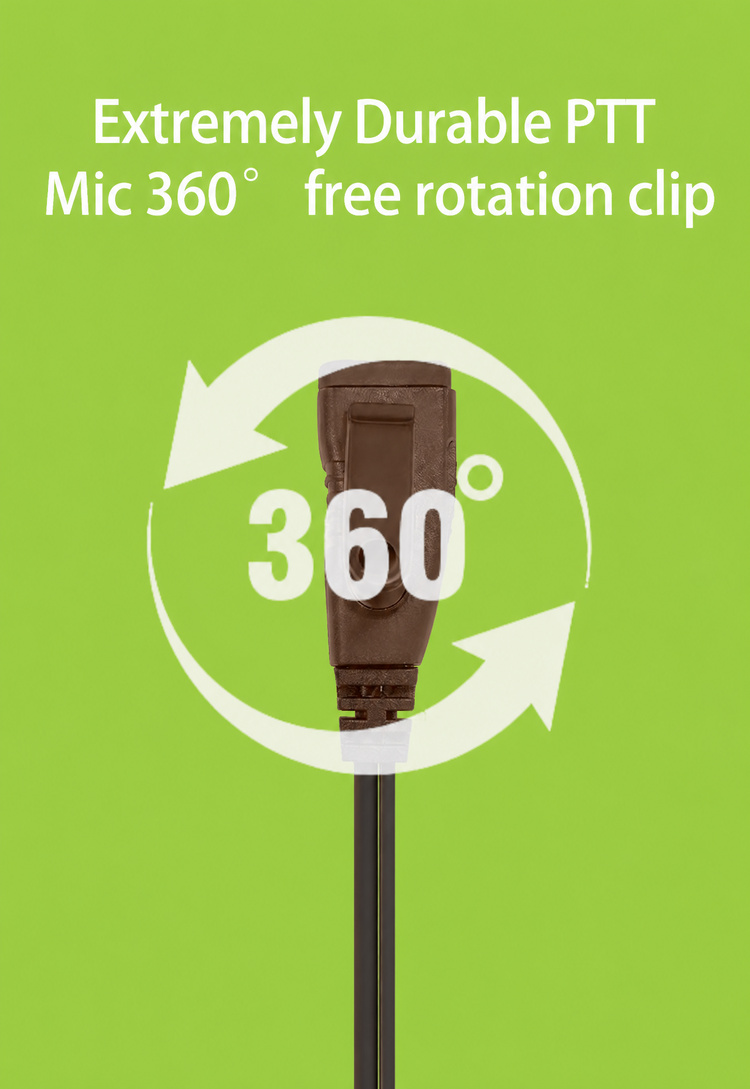

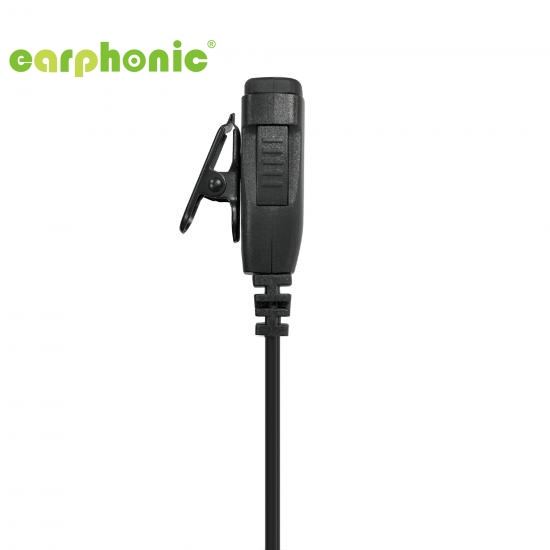

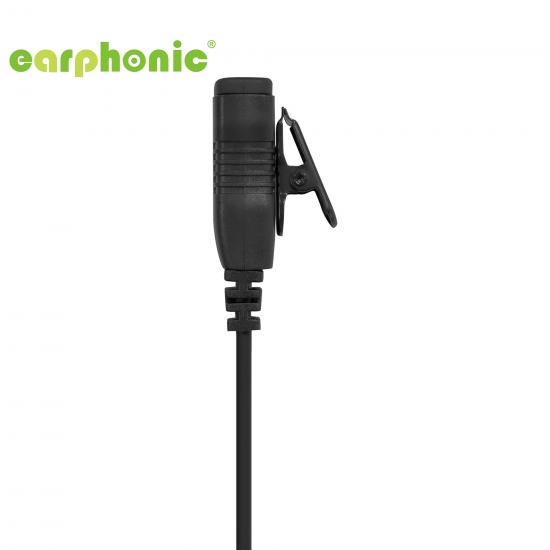

3. Inline PTT button enables quick and convenient hands-free operation
4. Reinforced heavy-duty cable resists bending and long-term daily abrasion
5. Widely compatible with most multi-pin two way walkie talkie models
Speaker Specification
|
Electrical Parameters of Speaker |
|
|
Impedance |
32Ω |
|
Resonance Frequency |
350Hz ±20% |
|
Intelligent Degree |
110±3dB At 1000 Hz At 0.179V |
|
Rated Power |
Rated Power Input 10mW, Max Power Input 30mW |
|
Frequency scope |
20HZ—20KHZ At 0.179 V |
|
Buzzes & Rattles |
Clear sound, no noise At 0.25V(50HZ-3KHZ) |
|
Distortion |
Less Than 5% at 1500Hz |
|
Polarity |
Positive Electrode,When an instantaneous DC voltage of 0.2V is applied to the positive electrode, causing the voice coil to move forward, the input terminal connected to the positive electrode is the "+" pole |
|
Flux Density |
±15% Guass (Surface) |
Microphone Specification
|
Electrical Parameters of The microphone |
|
|
Sensitivity |
-40dB≦S≦-36dB, At f=1kHz，S.P.L=1Pa，0dB=1V/Pa |
|
Output Impedance |
Zout=2.2KΩ,At f=1kHz |
|
Current Consumption |
IDss(Max)=500µA, At Vs=2.0V,RL=2.2KΩ |
|
Directivity |
Omni directional |
|
Signal to Noise Ratio |
S/N(Min)=55dB,At S:(f=1KHz.S.P.L=1Pa),N:(A-Weighted curve) |
|
Decreasing Voltage |
(ΔS-VS)Max=-3dB,At Vs Reduces from 2.0 to 1.0 |
|
Operating Voltage |
1≦V≦10 |
|
Maximum input S.P.L |
110dB,At f=1kHz,THD＜1% |

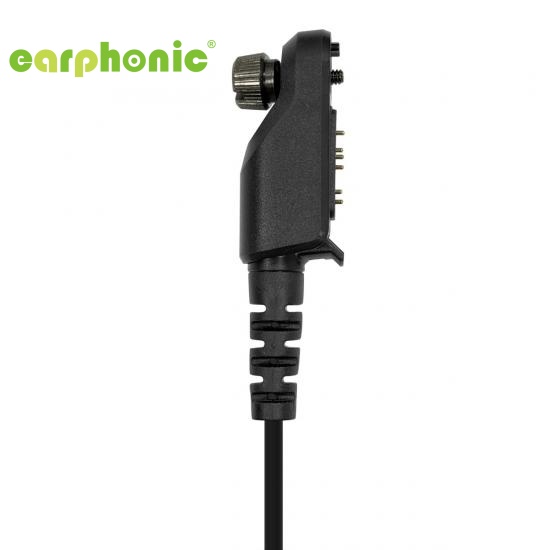

Compatible Radio Model
|
Hytera |
P50，P50 Pro，P60，P50E， |

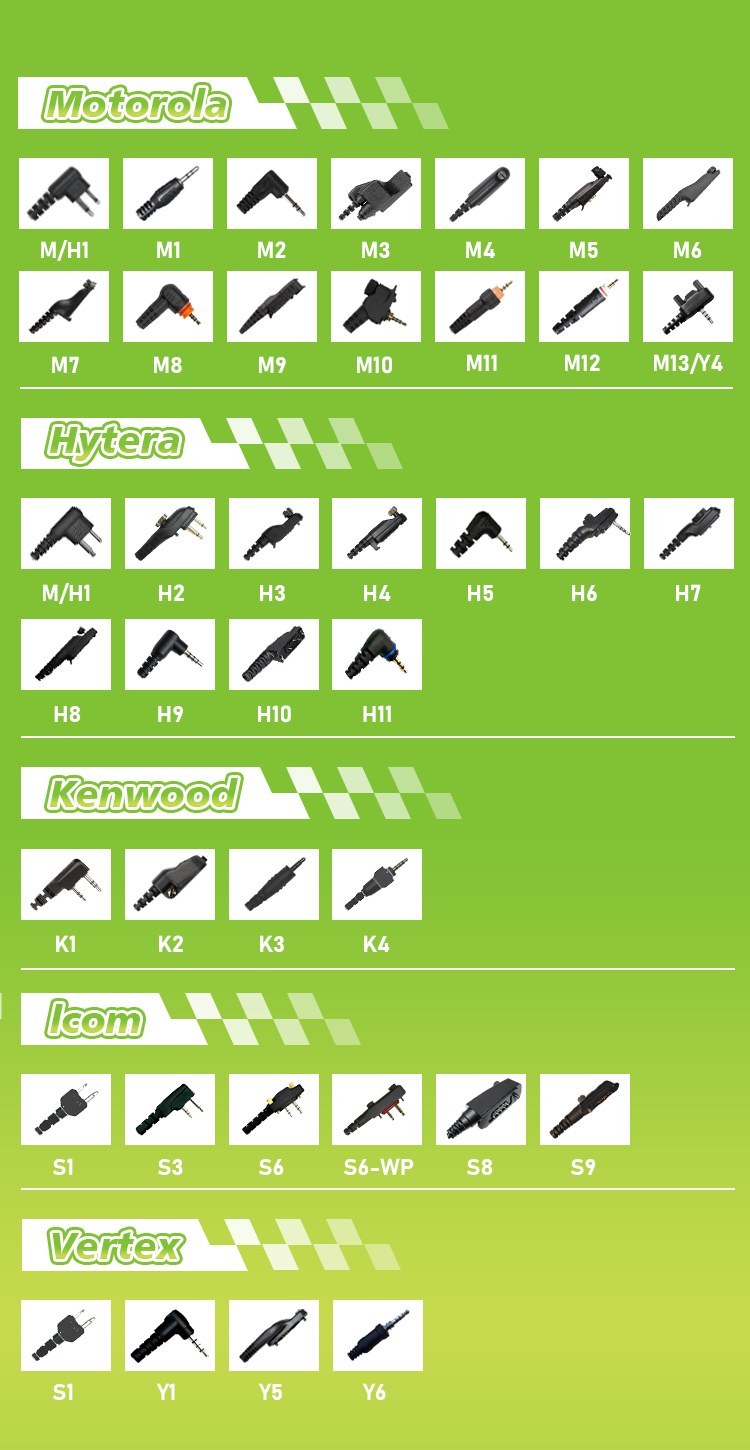

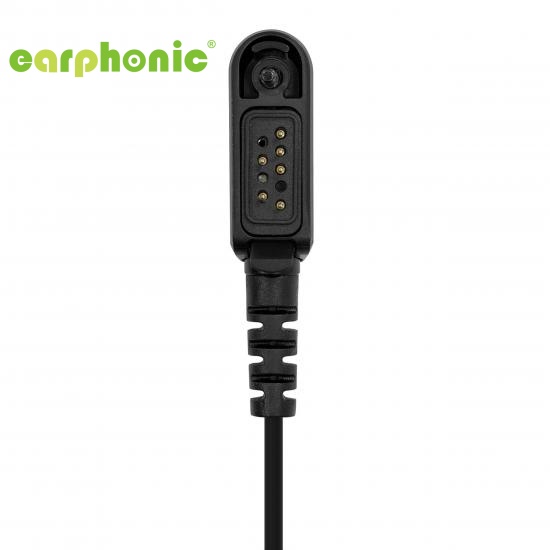

Optional Connector Model :
Connectors can be customized.
|
Brand |
Connectors |
|
Motorola |
R7, M1, M2, M3, M4, M5, M6, M7, M8, M9, CLP, S1, DLR110 |
|
Hytera |
M1, M4, M5, M6, H1, H2, H3, TC700 |
|
Kenwood |
K1, K2, K3, K4 |
|
Speura |
Speura |
|
Icom |
S1, S3, S6, S6-WP, S8, S9 |
|
Vertex |
S1, Y1, Y4, Y5, Y6 |
FAQ
Quantity less than 500PCS, it takes 5-7 days; Quantity is 501-2000 pieces, it takes 7-10 days;
We support express (DHL, FedEx, UPS, TNT), air freight, and sea freight.
