Walkie Talkie Headset for Hytera BD350 Product Profile

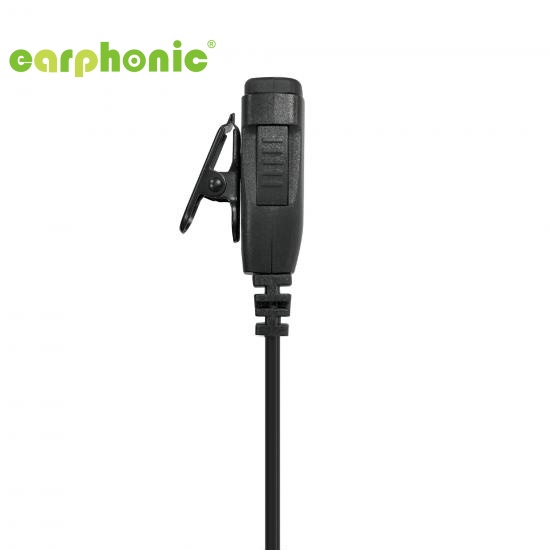

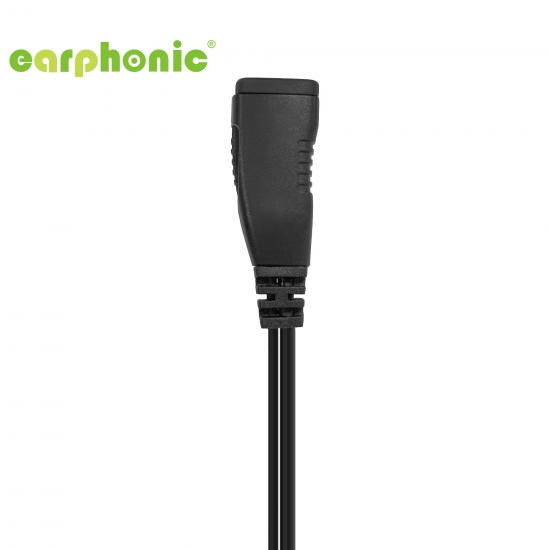

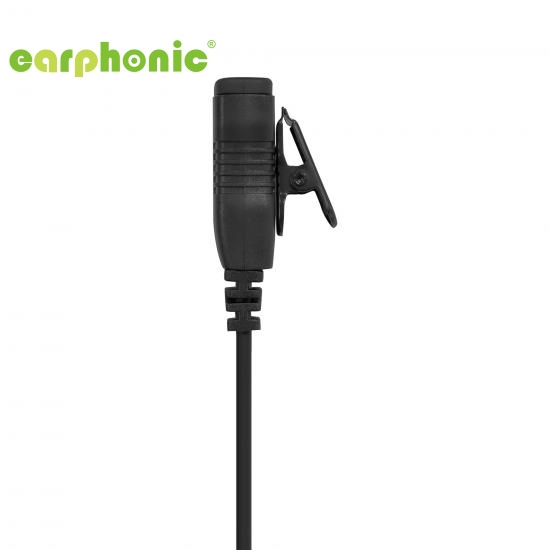

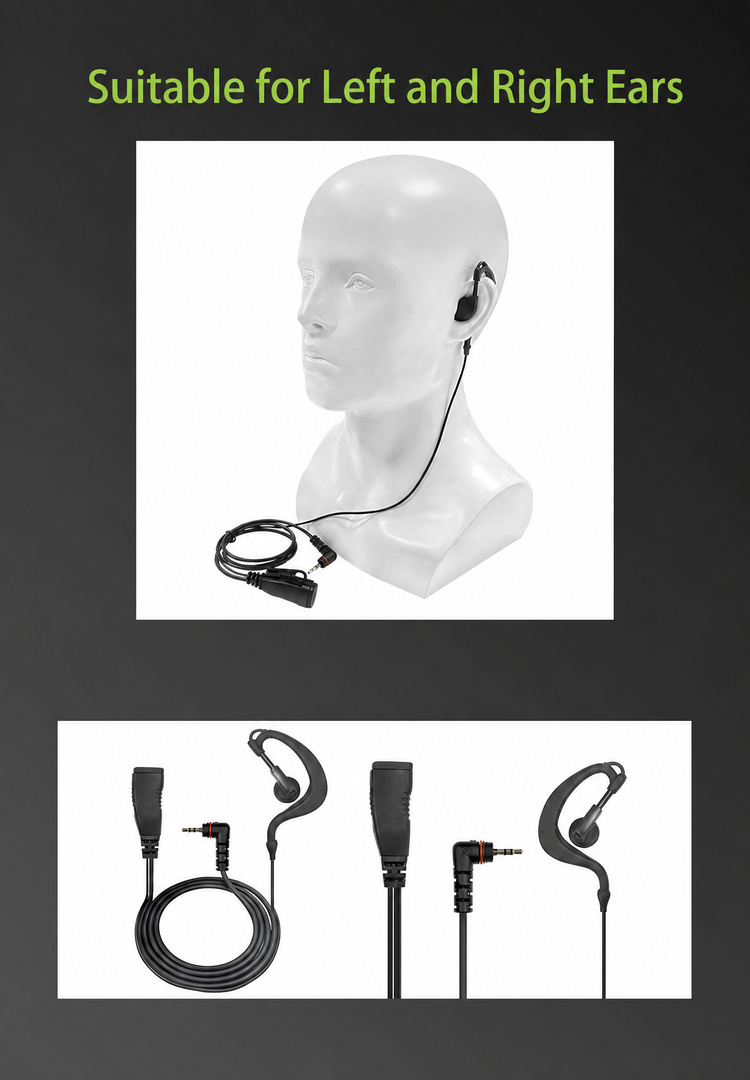

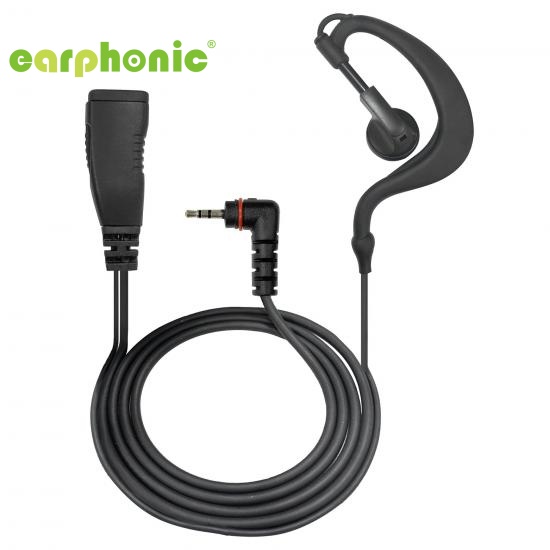

This ergonomic G‑hook communication earpiece comes with integrated inline PTT and microphone, tailor‑made for Hytera PD35X PD36X BD and TD series digital radios including PD350, PD360, PD370, BD300, BD350 and other radios. The curved soft ear hook stays securely attached to the ear during movement, bringing comfortable long‑shift wear without pressure. The inline PTT unit supports one‑touch transmission, paired with a sensitive microphone to deliver clear voice pickup in noisy field environments. The cable adopts reinforced strain relief structure at all joint positions, effectively resisting pulling, twisting and abrasion in daily patrol and mobile work scenarios. This hands‑free accessory is widely supplied to venue management, construction patrol, logistics security and field service teams.
OEM/ODM
We offer comprehensive OEM and ODM solutions for our partners. We can develop fully tailor‑made products based on your individual requirements. Our team handles everything from early‑stage product design to bespoke packaging, helping your brand stand out against market competitors.
Customization Options
1. Customize product size, style and raw materials
2. Custom colors and surface finishing
3. Logo imprinting and private‑label service
4. Custom packaging design for artwork and structure
5. Custom special features and performance enhancement
6. Personalized solutions exclusively built for your brand
Product Features

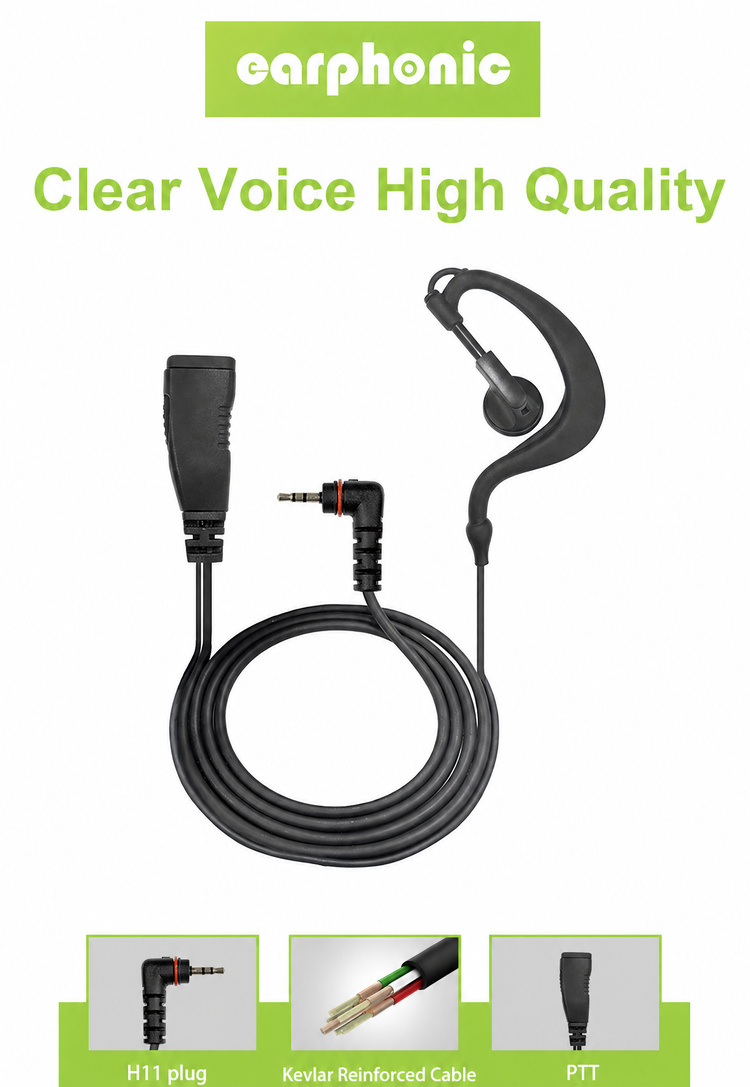

Walkie Talkie Headset 2.5mm Ear Hook Earpiece with PTT Mic for Hytera PNC370 Two Way Radio

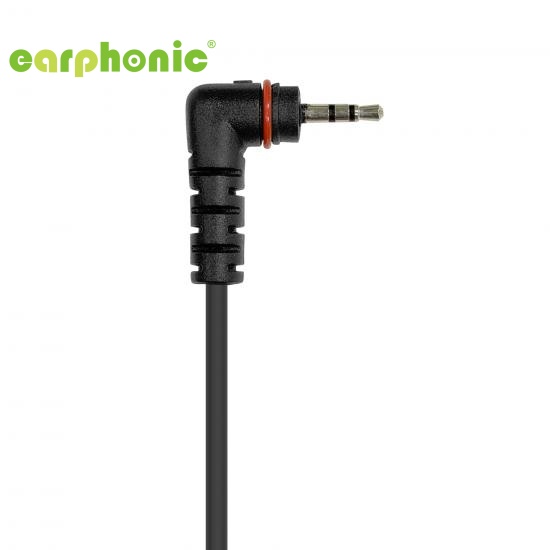

1. Universal 3.5mm 1-pin plug fits most walkie talkie models

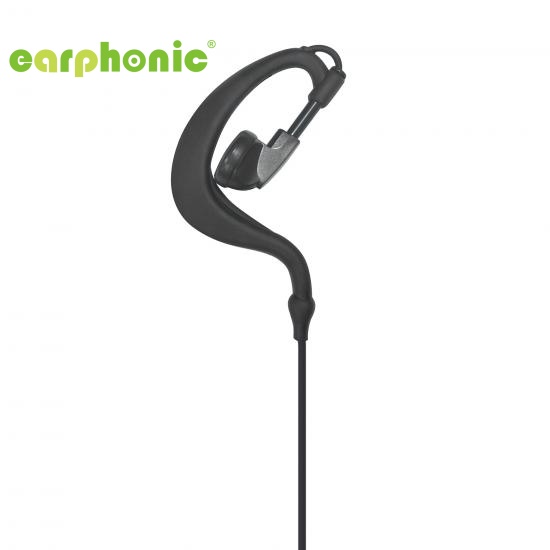

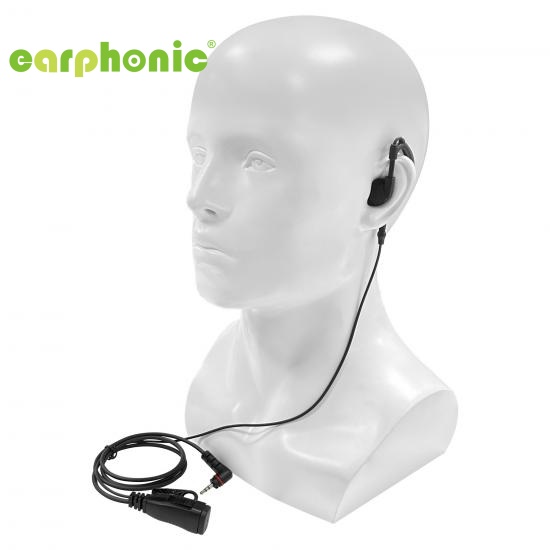

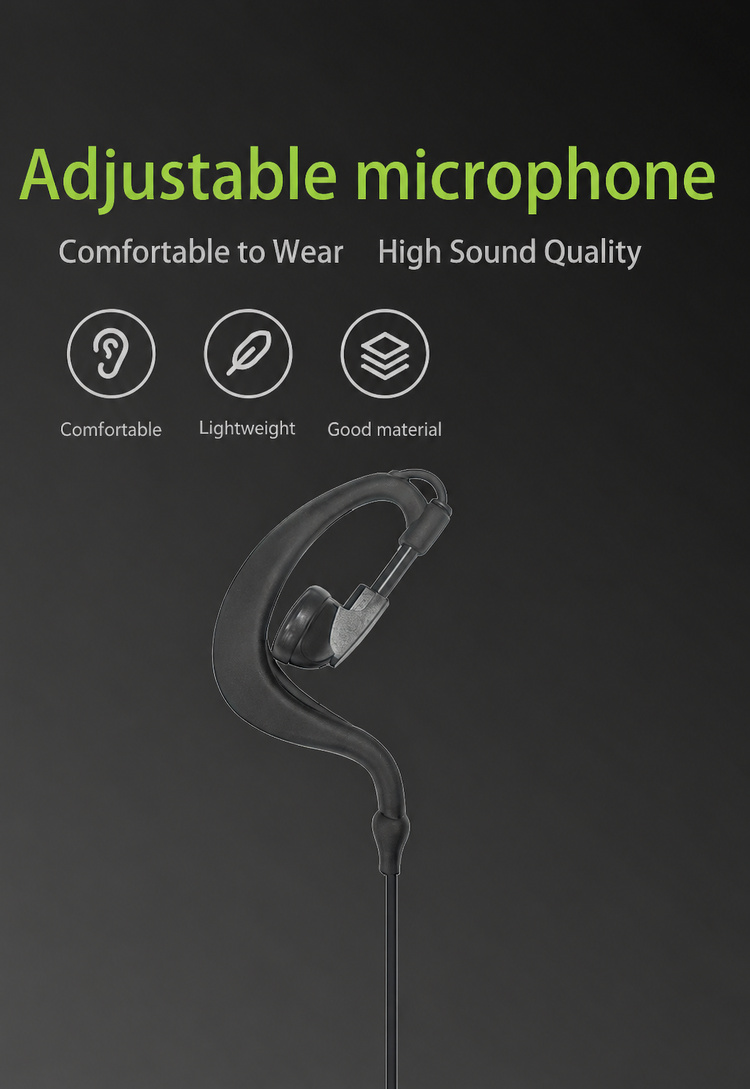

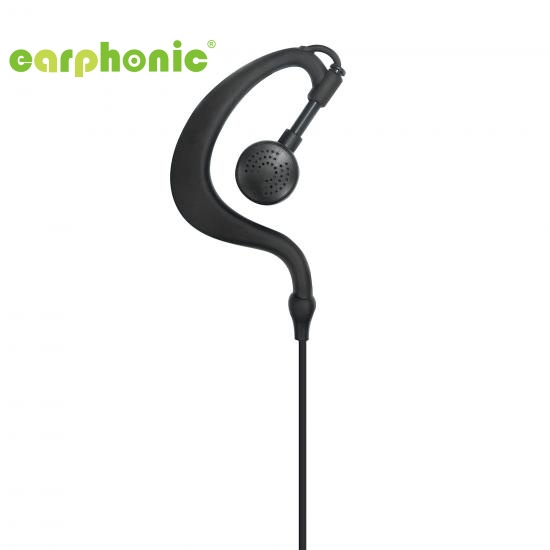

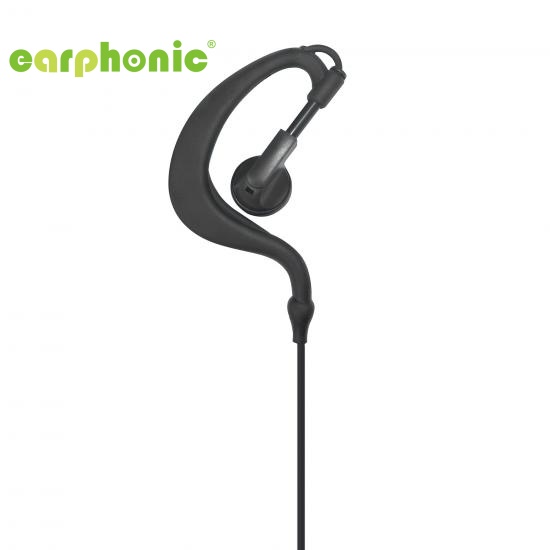

2. Soft flexible ear hook ensures comfortable all-day secure wear

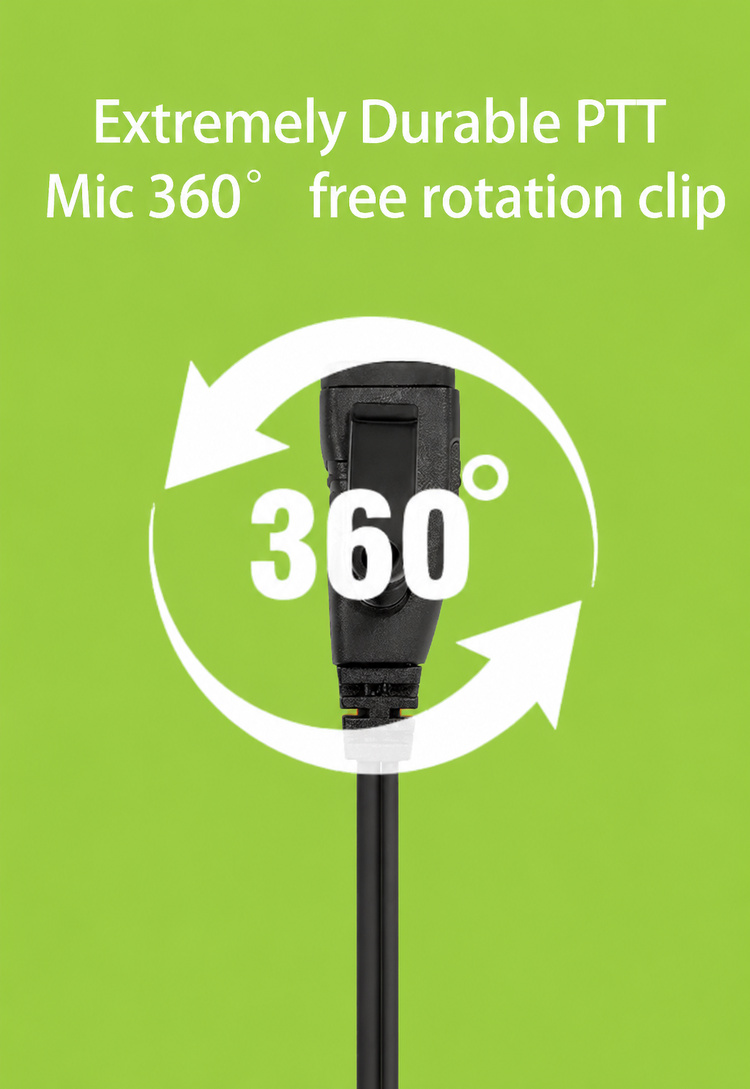

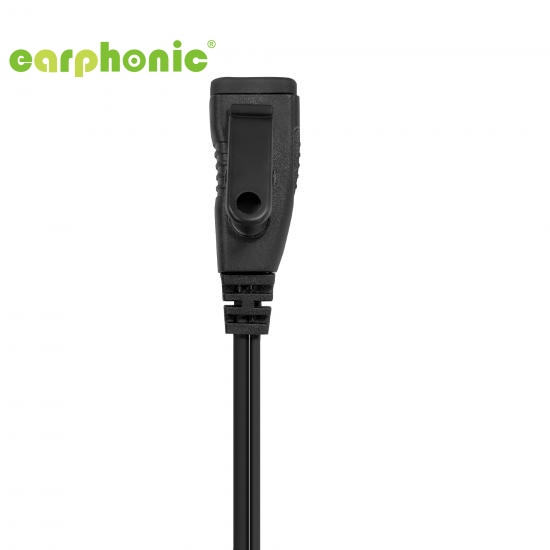

3. Integrated PTT button with high-clarity transmission microphone
4. Reinforced cable and strain relief for long-lasting durability
5. Hands-free design ideal for security, retail and service staff
Speaker Specification
|
Electrical Parameters of Speaker |
|
|
Impedance |
150Ω±3Ω |
|
Resonance Frequency |
350Hz ±20% |
|
Intelligent Degree |
111±5dB At 1000 Hz At 0.179V |
|
Rated Power |
Rated Power Input 2mW, Max Power Input 3mW |
|
Frequency Scope |
20HZ—20KHZ At 0.179 V |
|
Buzzes & Rattles |
Clear sound, no noise At 0.25V(50HZ-3KHZ) |
|
Distortion |
Less Than 5% at 1500Hz |
|
Polarity |
Positive Electrode,When an instantaneous DC voltage of 0.2V is applied to the positive electrode, causing the voice coil to move forward, the input terminal connected to the positive electrode is the "+" pole |
|
Flux Density |
±15% Guass (Surface) |
|
Speaker Shell Diameter |
Φ16mm±0.01mm |
|
Electrical Parameters of The microphone |
|
|
Sensitivity |
-40dB≦S≦-36dB, At f=1kHz，S.P.L=1Pa，0dB=1V/Pa |
|
Output Impedance |
Zout=2.2KΩ,At f=1kHz |
|
Current Consumption |
IDss(Max)=500µA, At Vs=2.0V,RL=2.2KΩ |
|
Directivity |
Omni directional |
|
Signal to Noise Ratio |
S/N(Min)=55dB,At S:(f=1KHz.S.P.L=1Pa),N:(A-Weighted curve) |
|
Decreasing Voltage |
(ΔS-VS)Max=-3dB,At Vs Reduces from 2.0 to 1.0 |
|
Operating Voltage |
1≦V≦10 |
|
Maximum Input S.P.L |
110dB,At f=1kHz,THD＜1% |
Compatible Radio Model
| Brand | Radio Model |
| Hytera |
PD350, PD351, PD352, PD360, PD362, PD365, PD370、PD372, BD300, BD302i, BD350, BD352, BD355, TD350, TD360, TD370 |
Optional Model :

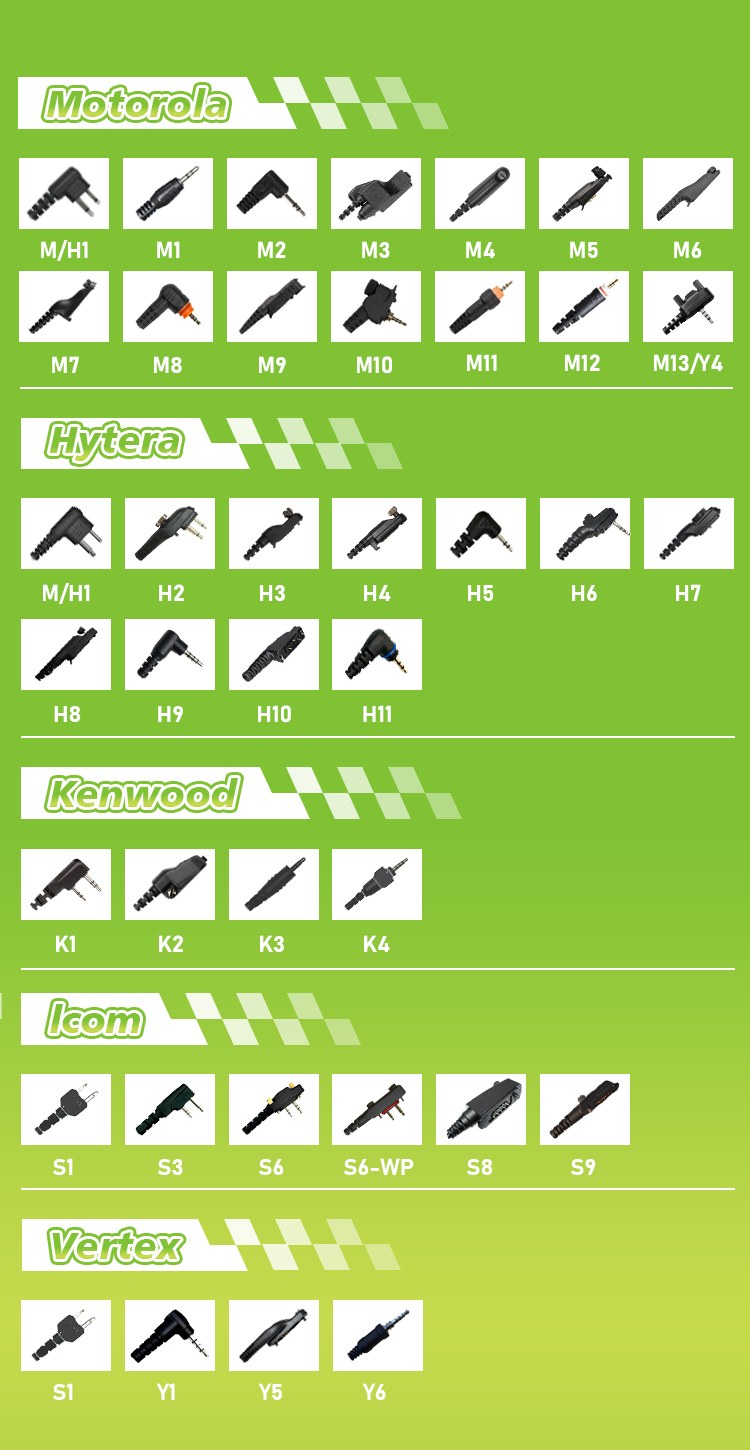

Connectors can be customized.
|
Brand |
Connectors |
|
Motorola |
R7, M1, M2, M3, M4, M5, M6, M7, M8, M9, CLP, S1, DLR110 |
|
Hytera |
M1, M4, M5, M6, H1, H2, H3, TC700 |
|
Kenwood |
K1, K2, K3, K4 |
|
Speura |
Speura |
|
Icom |
S1, S3, S6, S6-WP, S8, S9 |
|
Vertex |
S1, Y1, Y4, Y5, Y6 |
FAQ
Sample lead time is normally 1–3 working days.
