G Hook Earpiece for Hytera P30 Product Profile

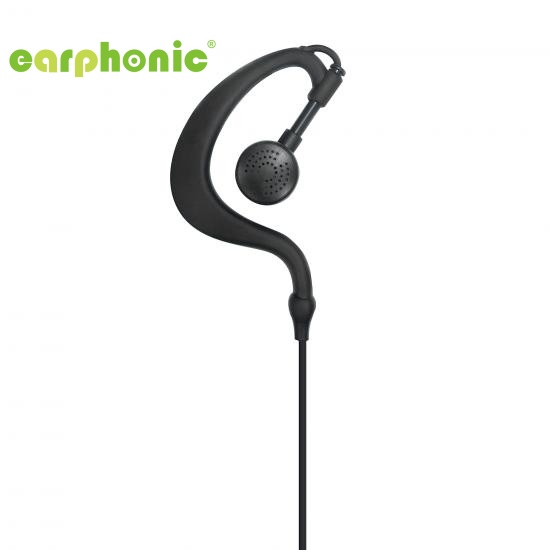

This G‑shape earhook earpiece with inline PTT microphone is purpose‑built to match the Hytera P30 PoC radio. Featuring a flexible G hook, it securely hangs on the ear without causing fatigue even during long shifts. Constructed with durable wire and solid molded joints, this earpiece delivers reliable performance for daily continuous use. It is widely adopted by security teams, property staff, fleet operators and on‑site industrial crews. We support OEM and ODM services including custom logo, cable length, packaging and connector modification to meet bulk order and project demands.
OEM/ODM
We provide full‑range OEM and ODM solutions to support partners in developing tailor‑made products to match your unique market requirements. Our team manages the whole workflow, from preliminary product design to custom packaging development. We help build your brand identity and create competitive advantages in the marketplace.
Customization Options
1. Product specifications: dimensions, appearance styles and raw material selection
2. Custom colors and surface finishing treatments
3. Logo imprinting and private labeling services
4. Custom‑designed packaging artwork and packaging structures
5. Custom special functions and performance optimization
6. Exclusive personalized solutions built for your brand
Product Introduction

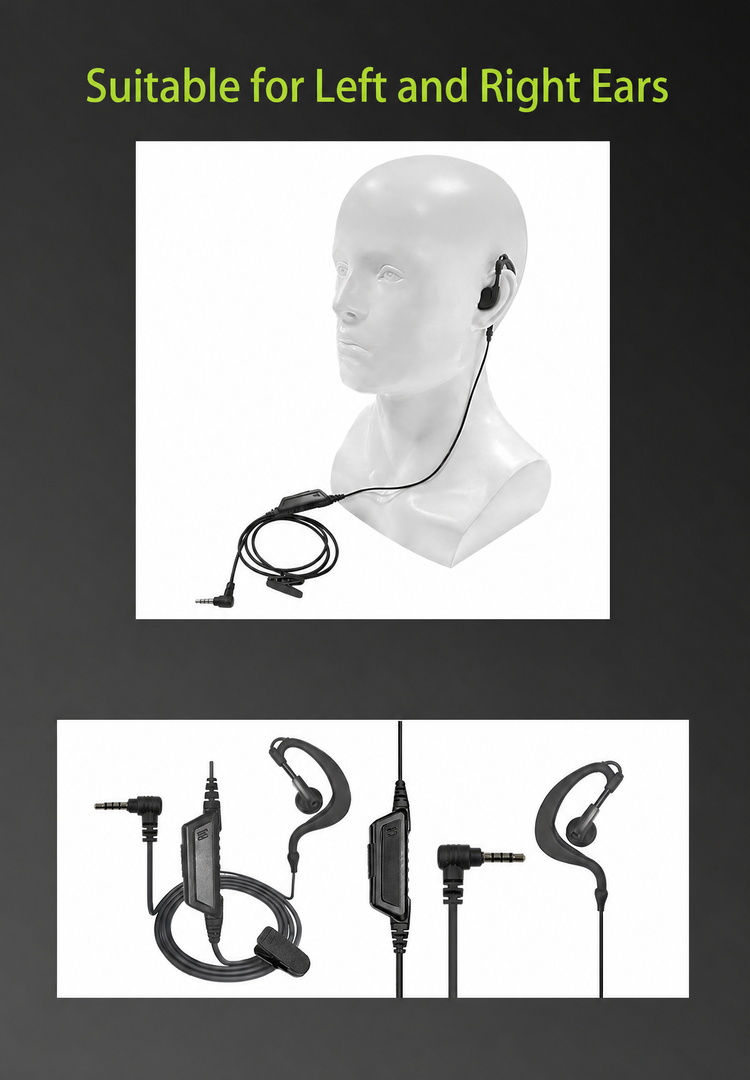

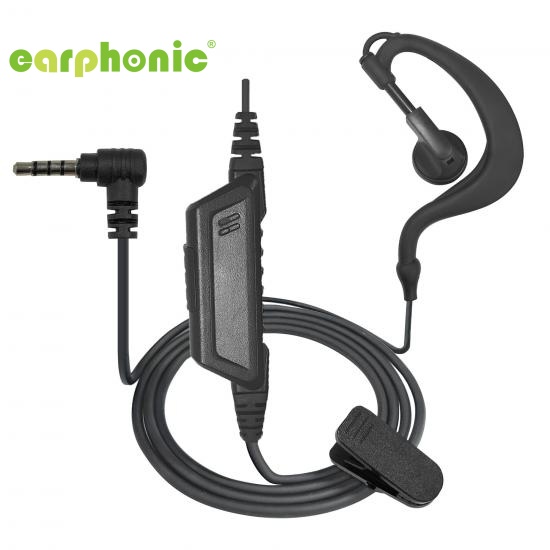

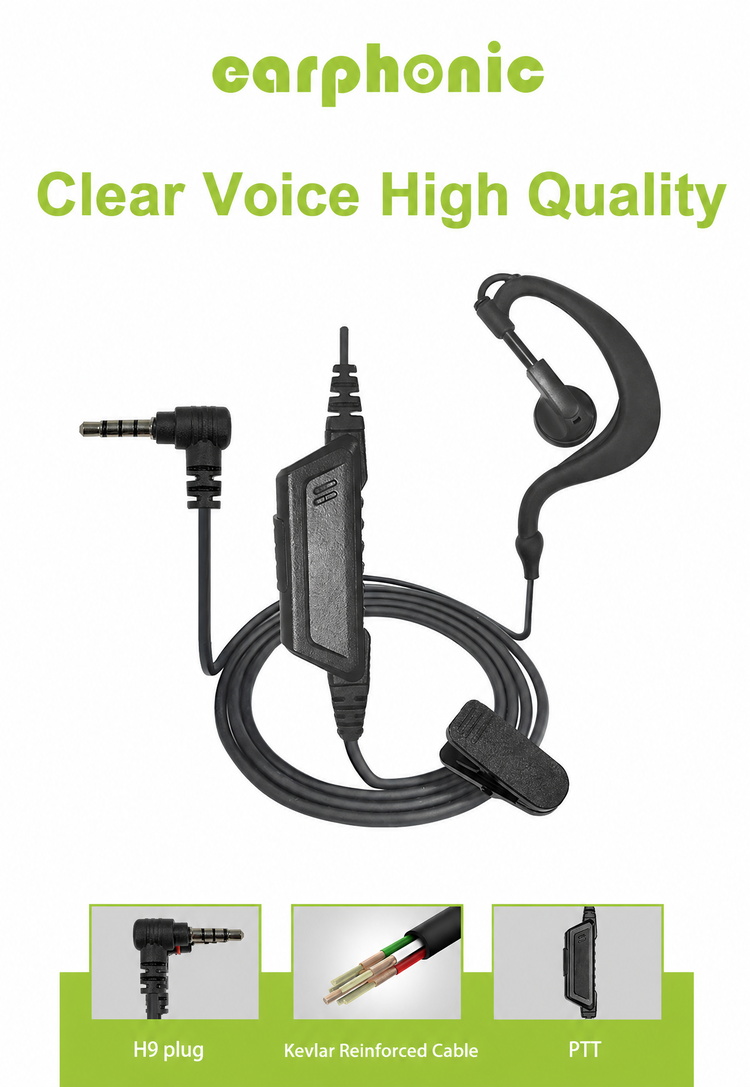

Walkie Talkie Headset Earhook Earpiece with Inline PTT Microphone 3.5mm Jack for Two Way Radio

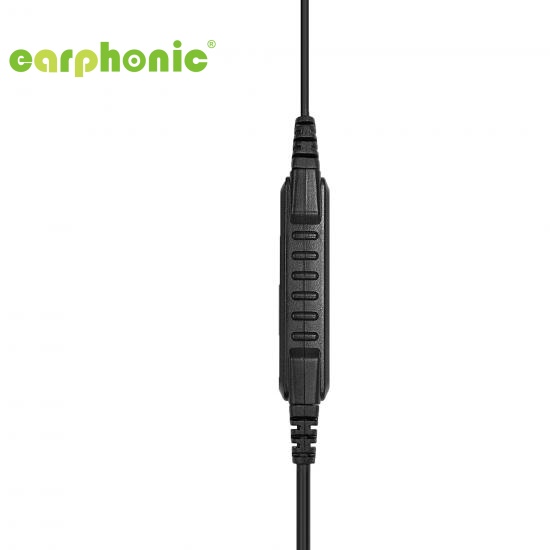

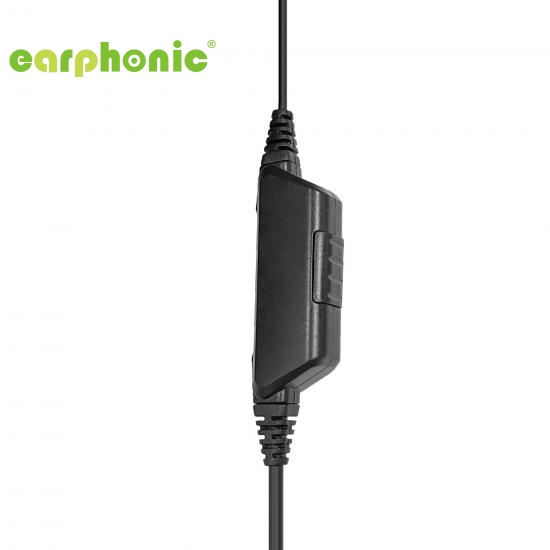

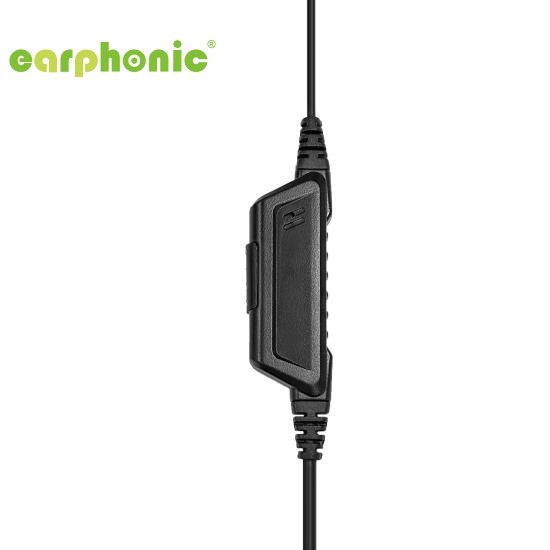

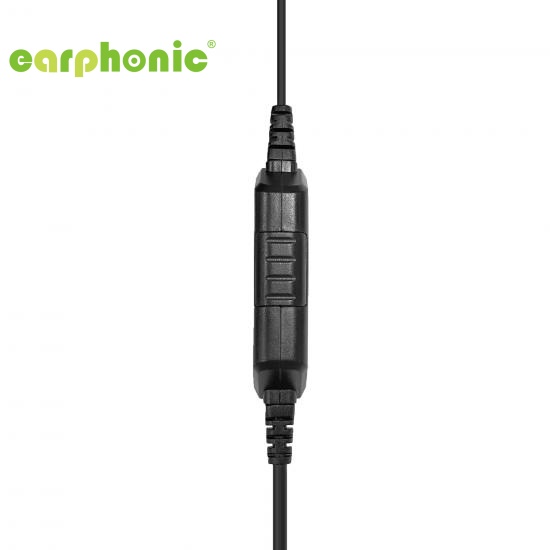

1. Built-in PTT button with high-clarity transmission mic

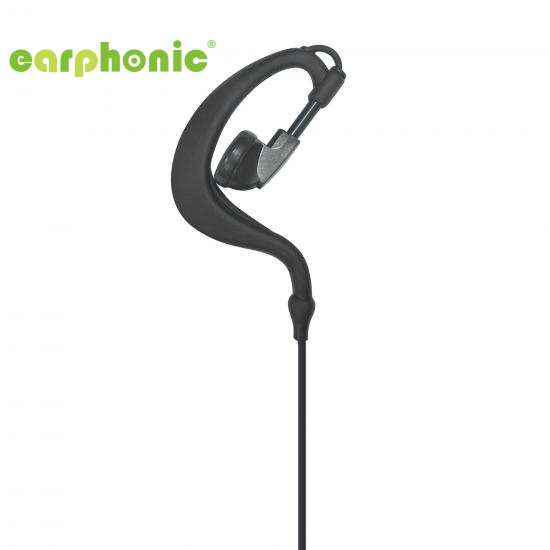

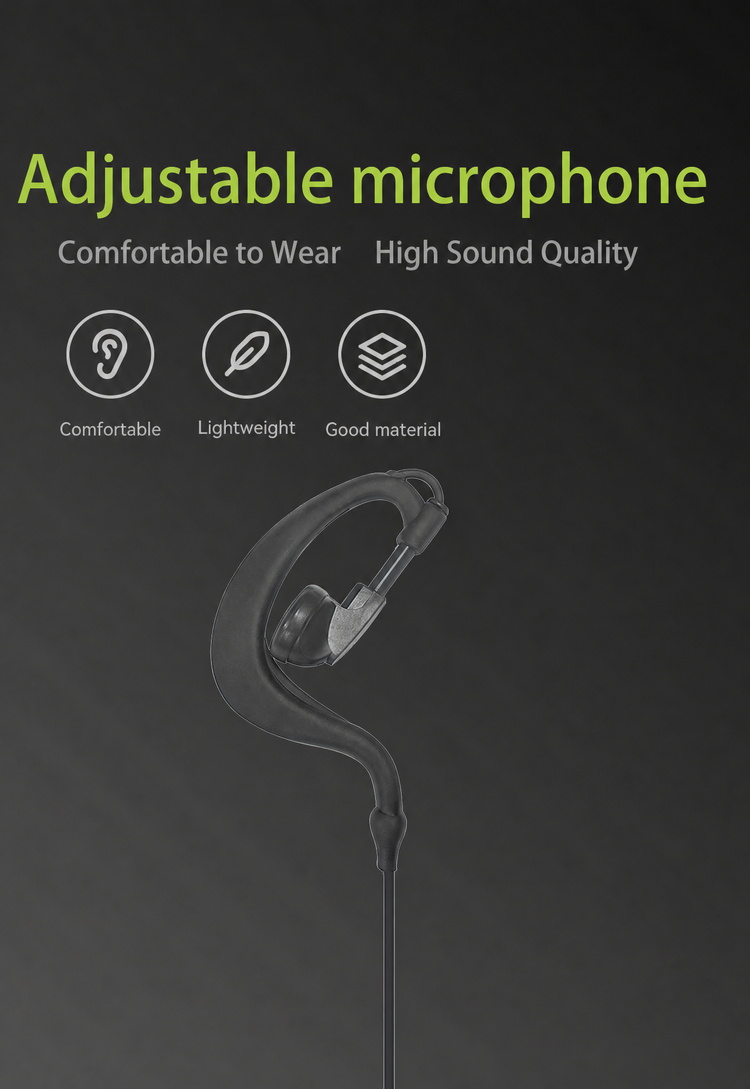

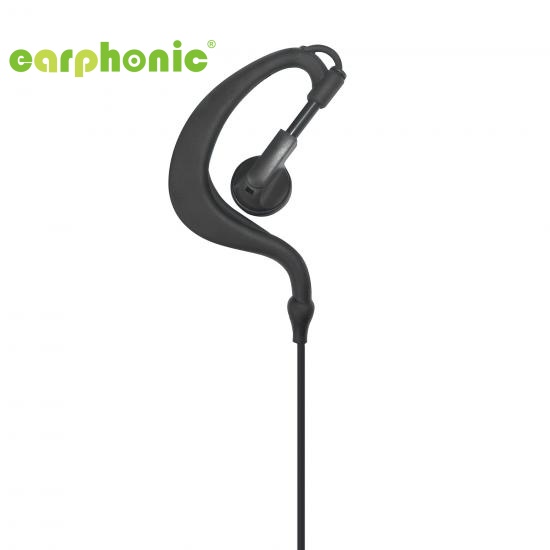

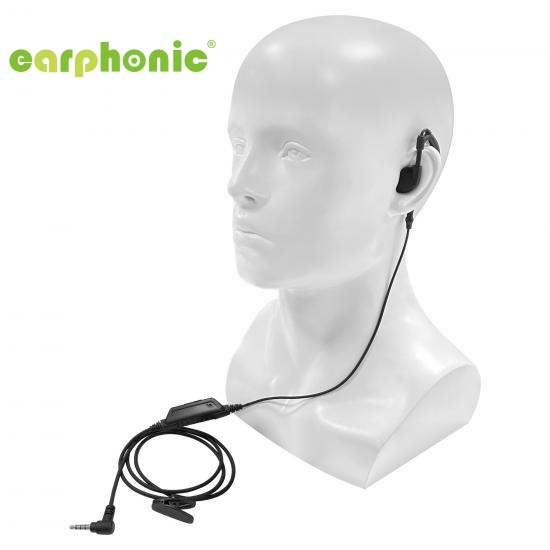

2. Soft flexible ear hook for all-day comfortable wear

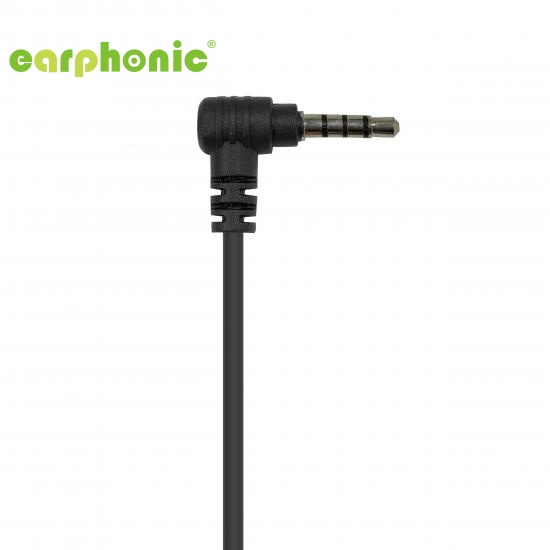

3. Universal 3.5mm plug fits most walkie talkie models
4. Reinforced durable cable resists pulling and abrasion

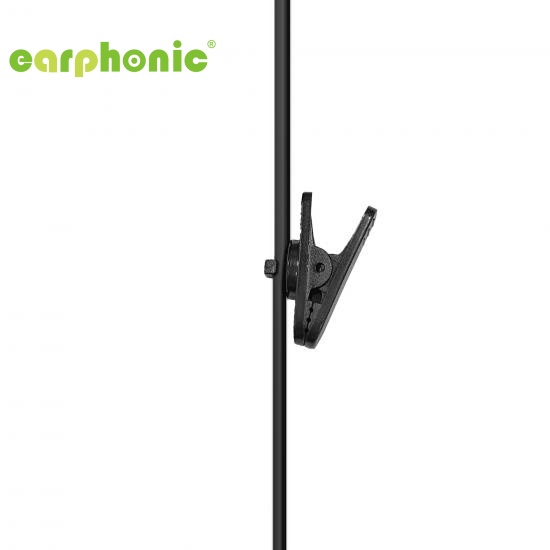

5. Comes with clothing clip for convenient hands-free use
Speaker Specification
|
Electrical Parameters of Speaker |
|
|
Impedance |
150Ω±3Ω |
|
Resonance Frequency |
350Hz ±20% |
|
Intelligent Degree |
111±5dB At 1000 Hz At 0.179V |
|
Rated Power |
Rated Power Input 2mW, Max Power Input 3mW |
|
Frequency Scope |
20HZ—20KHZ At 0.179 V |
|
Buzzes & Rattles |
Clear sound, no noise At 0.25V(50HZ-3KHZ) |
|
Distortion |
Less Than 5% at 1500Hz |
|
Polarity |
Positive Electrode,When an instantaneous DC voltage of 0.2V is applied to the positive electrode, causing the voice coil to move forward, the input terminal connected to the positive electrode is the "+" pole |
|
Flux Density |
±15% Guass (Surface) |
|
Speaker Shell Diameter |
Φ16mm±0.01mm |
Microphone Specification
|
Electrical Parameters of The microphone |
|
|
Sensitivity |
-40dB≦S≦-36dB, At f=1kHz，S.P.L=1Pa，0dB=1V/Pa |
|
Output Impedance |
Zout=2.2KΩ,At f=1kHz |
|
Current Consumption |
IDss(Max)=500µA, At Vs=2.0V,RL=2.2KΩ |
|
Directivity |
Omni directional |
|
Signal to Noise Ratio |
S/N(Min)=55dB,At S:(f=1KHz.S.P.L=1Pa),N:(A-Weighted curve) |
|
Decreasing Voltage |
(ΔS-VS)Max=-3dB,At Vs Reduces from 2.0 to 1.0 |
|
Operating Voltage |
1≦V≦10; |
|
Maximum Input S.P.L |
110dB,At f=1kHz,THD＜1% |
Compatible Radio Model
| Brand | Radio Model |
| Hytera |
PNC380,PNC360,PNC370Se,G32.G36,PNC310,PNC560,HYT-P30,HYT-S35,HYT-S31,HYT-S10 |

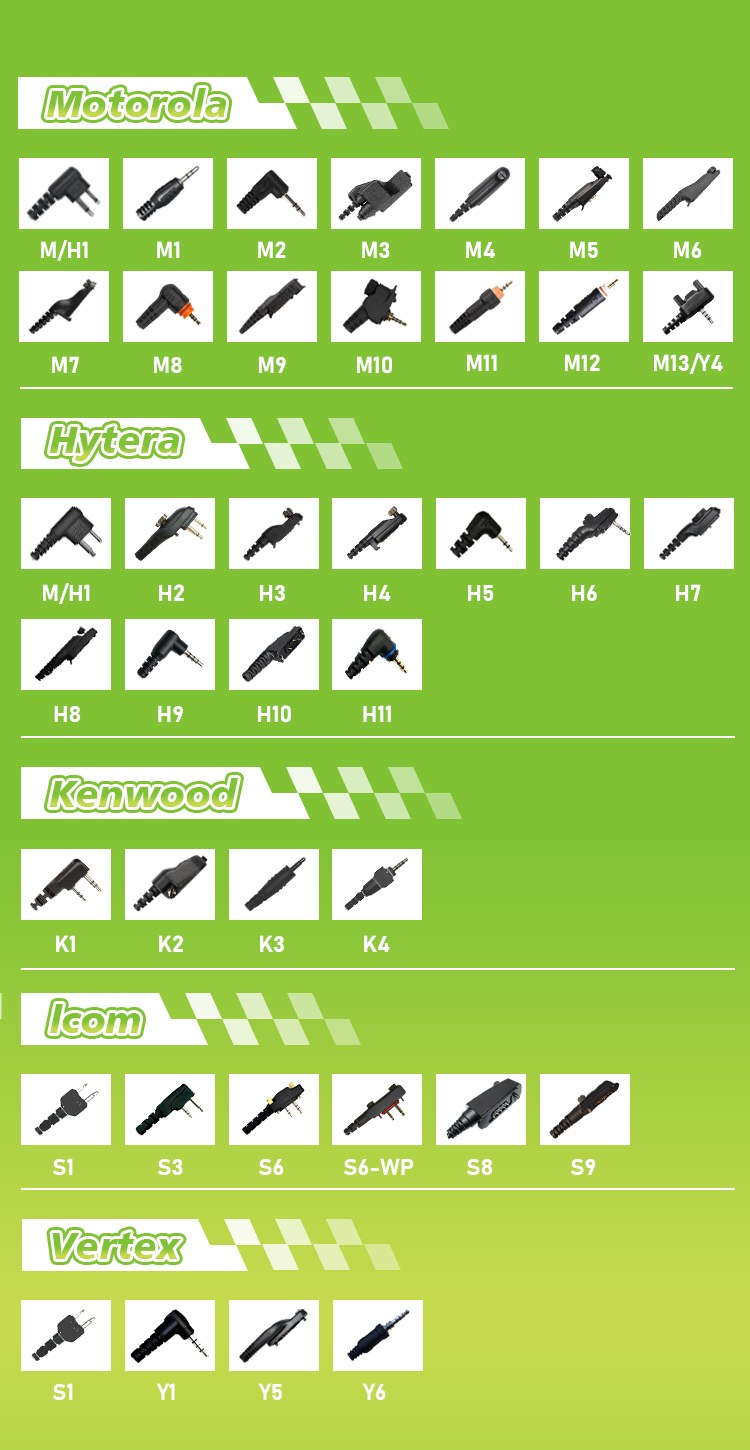

Compatible Model :
Connectors can be customized.
|
Brand |
Connectors |
|
Motorola |
R7, M1, M2, M3, M4, M5, M6, M7, M8, M9, CLP, S1, DLR110 |
|
Hytera |
M1, M4, M5, M6, H1, H2, H3, TC700 |
|
Kenwood |
K1, K2, K3, K4 |
|
Speura |
Speura |
|
Icom |
S1, S3, S6, S6-WP, S8, S9 |
|
Vertex |
S1, Y1, Y4, Y5, Y6 |
FAQ
Most of our products are compatible with major brands such as Motorola, Hytera, Kenwood, Icom etc. Please provide the exact radio model for accurate compatibility confirmation.
We provide high-quality replacement accessories. OEM / ODM services are also available for bulk orders.
